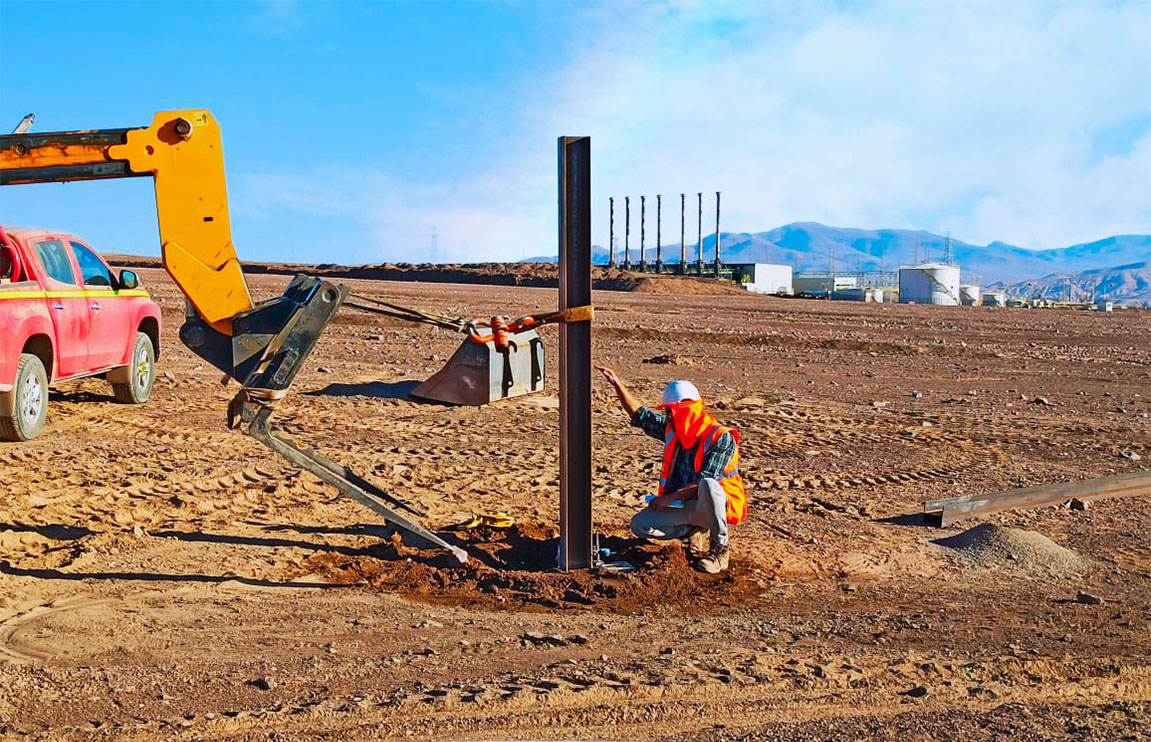

Pullout testing is a method of evaluating the strength of a soil-anchor system, such as a pile or a soil nail, by applying a tensile load to the anchor until it is pulled out of the soil. The resulting data can be used to determine the capacity of the anchor, as well as to assess the strength and stability of the soil in which it is embedded.
To perform a pullout test, the following steps should be followed:
- Determine the location and orientation of the anchor. The anchor should be placed in a representative soil profile, and the orientation should be such that the applied load is parallel to the direction of the anchor.
- Install a load cell and a hydraulic jack at the top of the anchor. The load cell will measure the applied load, while the hydraulic jack will be used to apply the tensile force.
- Excavate a pit around the anchor to a depth sufficient to allow for the installation of a reaction frame. The reaction frame should be secured to the ground using concrete anchors or other suitable means.
- Connect the load cell and hydraulic jack to the reaction frame using cables or rods. The cables or rods should be aligned with the direction of the applied load.
- Slowly apply a tensile load to the anchor using the hydraulic jack. The load should be increased in increments until the anchor fails or is pulled out of the soil.
- Record the load at failure and the displacement of the anchor.
- Calculate the capacity of the anchor using the recorded data and the cross-sectional area of the anchor.
- Analyze the data to determine the strength and stability of the soil in which the anchor is embedded.
It is important to follow proper safety procedures when performing a pullout test, including wearing protective equipment and ensuring that all equipment is properly secured and in good working order. The test should also be performed by trained professionals who are familiar with the appropriate procedures and equipment.
